Product Lineup

Chem Trend 제품 Products Select Guide 입니다.

Chemtrend 동영상 보기 click.
견적요청서      주문요청서

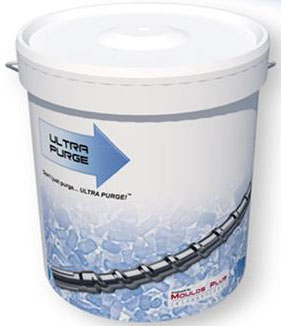

Table # Ultra Purge Product Lineup
Items Products PDS MSDS Temperature Range Summary
Purging Compounds
(Screw 퍼지제)

HT 200 ~ 380℃ PPS, PPO, PSU, Noryl, PEEK, ULTEM[Hot Runner System]
HT+ 250 ~ 400℃ PPS, PPO, PSU, Noryl, PEEK, ULTEM
PC     220 ~ 340℃ Any resin going to PC
PMMA     200 ~ 280℃ Any resin going to PMMA or PA12
HIGH-E     190 ~ 320℃ PA, PC, PS, PBT, PMMA, SAN
5150 190 ~ 350℃ ABS, PA, PC, PS, PBT, PMMA, SAN, PET, GPPS, HIPS
5060     190 ~ 320℃ PA, PC, PS, PBT, PMMA, SAN, PET, GPPS, HIPS
LOW-E     140 ~ 260℃ EVA, PVC, POM, TPE, TPR, TPU
PET-E     190 ~ 320℃ PET
P-O     170 ~ 300℃ HDPE, LDPE, LLDPE, PE, PP, TPO
5050     190 ~ 350℃ All resins within the above temp. range
CRX     100 ~ 260℃ PVC
ME-C     190 ~ 350℃ All resins within the above temp. range
PO-C     170 ~ 320℃ HDPE, LDPE, LLDPE, PE, PP, TPO
9010     140 ~ 320℃ PA, PC, PS, PBT, PMMA, SAN
PET-C     190 ~ 320℃ PET
BP     170 ~ 380℃ HDPE, LDPE, LLDPE, PE, PP
5050C     190 ~ 350℃ All resins within the above temp. range
5060C     190 ~ 320℃ PA, PC, PS, PBT, PMMA, SAN, PET, GPPS, HIPS
9015     170 ~ 320℃ GPPS, HDPE, HIPS, LDPE, LLDPE, PE, PP, TPO

Table 1 Product Lineup
Items Products PDS MSDS Summary
Purging Compounds
(Screw 퍼지제)

Lusin Clean G315 Processing Temperature 315℃ 까지 사용가능, Materials with Low Melt Index
Lusin Clean G320 Processing Temperature 320℃ 까지 사용가능, MFI 15 이상 원재료

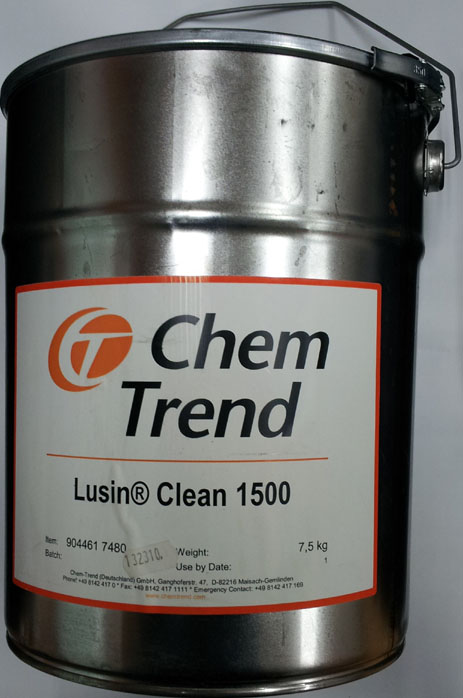

Lusin Clean 1500 Processing Temperature 320℃ 까지 사용가능
Polycarbonate 전용 Grade 입니다.

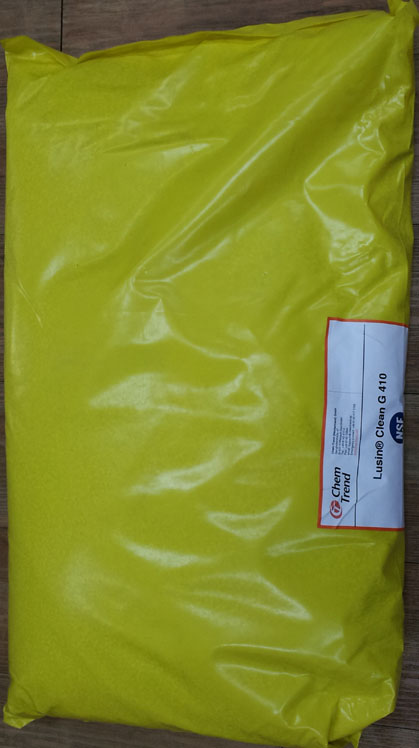

Lusin Clean G410 Processing Temperature 410℃ 까지 사용가능
SUPER ENGINEERING PLASTICS 원재료
Lusin Clean G300   Processing Temperature 295℃ 까지 사용가능
ENGINEERING PLASTICS 원재료, PVC
Lusin Clean G301   Processing Temperature 300℃ 까지 사용가능
Olefin based polymers원재료, Very Low MFI (PE/PP)
Lusin Clean LD250   Processing Temperature 250℃ 까지 사용가능, Extrusion, Blown Film
Screw, Cylinder and Heads of LDPE Film extruders
Lusin Clean OH251     Processing Temperature 250℃ 까지 사용가능, PE/PP/PS/SAN/ABS/PVC/POM
Lusin Clean OH311   Processing Temperature 300℃ 까지 사용가능, PVC (압출, 사출)
Lusin Clean G295C   Processing Temperature 295℃ 까지 사용가능, 고농축 Purging Compounds
빠른 Cleaning 효과, 소량 사용 가능
Cleaning Agents
(세척제)

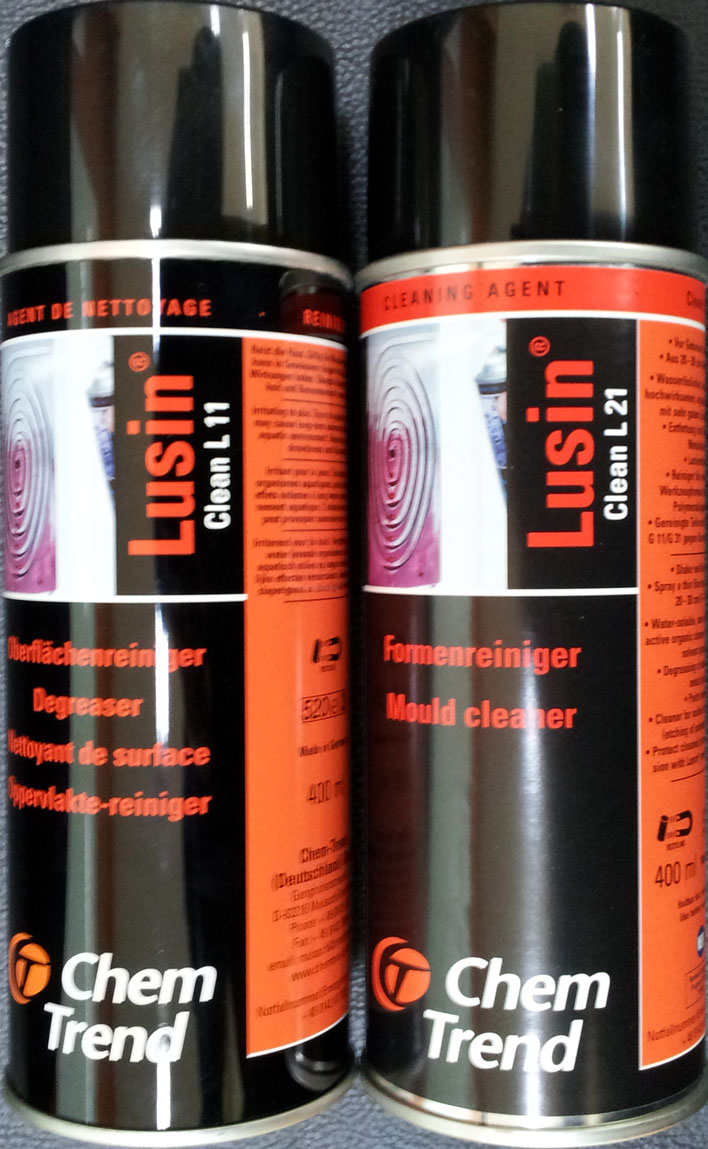

Lusin Clean L11   Special degreaser, degreases and cleans thoroughly, short drying times
suitable for plastic and rubber
Lusin Clean L21 Special mold cleaner, removes polymer residues, rapid cleaning effect
Lusin Clean L21 F Special mold cleaner, removes polymer residues, rapid cleaning effect
L21 Upgrade Version
Lusin Clean L23 F Special mold cleaner, removes polymer residues, rapid cleaning effect
L21F Upgrade Version

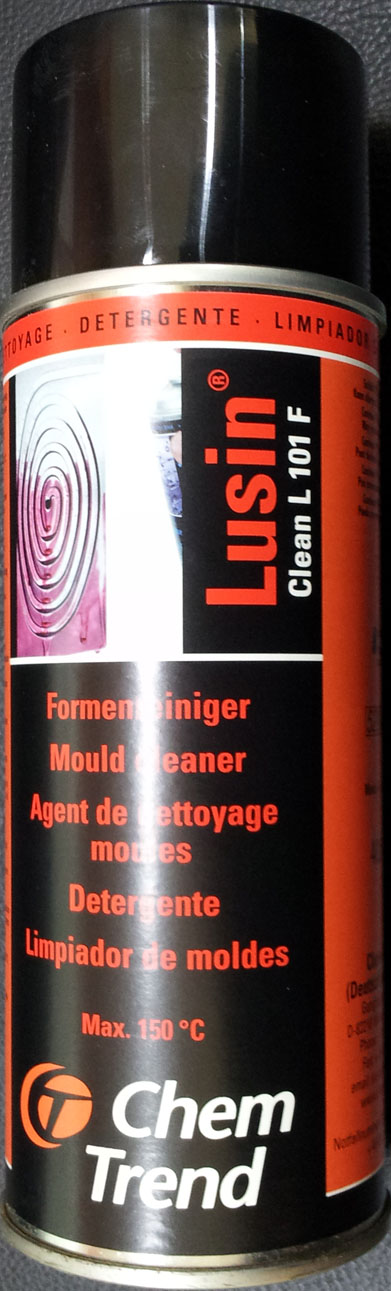

Lusin Clean L101F Special mold cleaner, removes polymer residues, rapid cleaning effect
for use up to 150℃ mold temperature
Lusin Clean L51   ALL-around cleaning agent, removes oil, grease, wax and resin deposits
spreads easily and rapidly
Lusin Clean W81   cleaning concentrate, water based cleaner
mult-purpose cleaner for industrial use
Lusin Clean W101 Aqueous alkaline formulation based on chelat builders
Not suitable for use with aluminium or non-ferrous metals
The cleaner attacks paintwork and various plastic materials
Lusin Clean 61-205   Universal cleaner and thinner,degreases and cleans thoroughly
particularly suitable for degreasing and mold cleaning,suitable for ultrasonic cleaning
Lusin Clean 10-302   alkaline for ultrasonic cleaning
Lusin Clean 10-303   Additive for alkaline Electrolytical Cleaning and Descaling Baths
Lubricants
(윤활제)

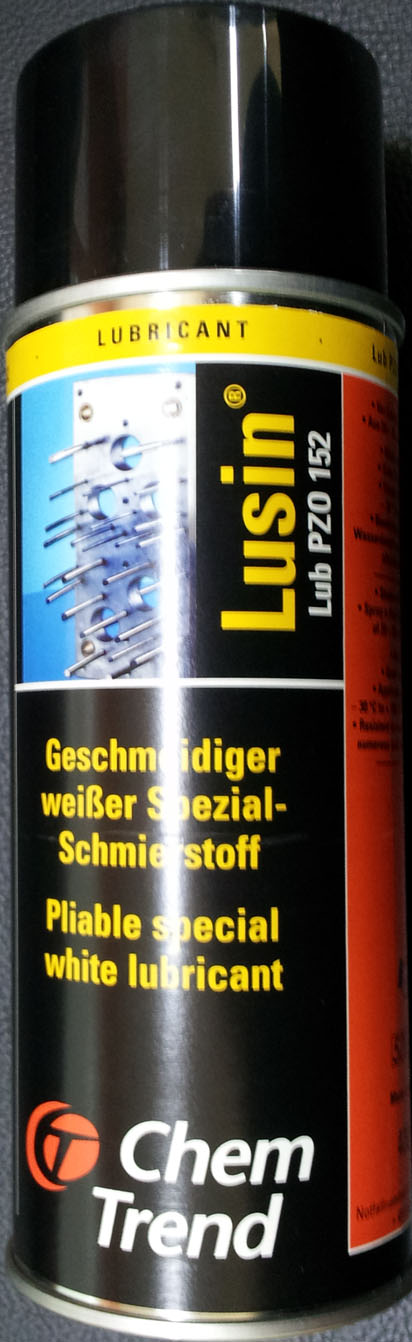

LUB PZO 152 Special lubricating and assembly paste
for use up to 150℃ mold temperature, for slides and ejector pins

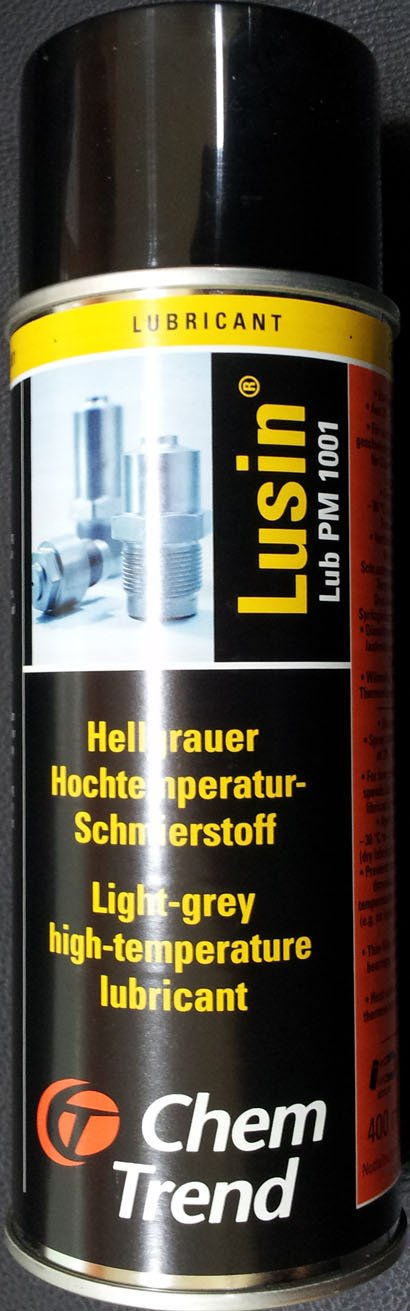

Lusin LUB PM 1001 Assembly paste for nozzles and other high temperature applications
for use up to 1000℃, thermally conductive
사출기 Screw 연결부 Nozzle,압출기 Heads부 Screw 연결부위의 내열윤활제로 사용
Lusin LUB UH1 96-402 White high temperature lubricating and assembly paste
for use up to 1200℃, good corrosion protection
Anti-Corrosive/
Protective Agents
(부식방지/보호제)

Lusin Protect G11/G12   Grease-like anti-corrosion agent
repels moisture, ensures temporary protection against corrosion

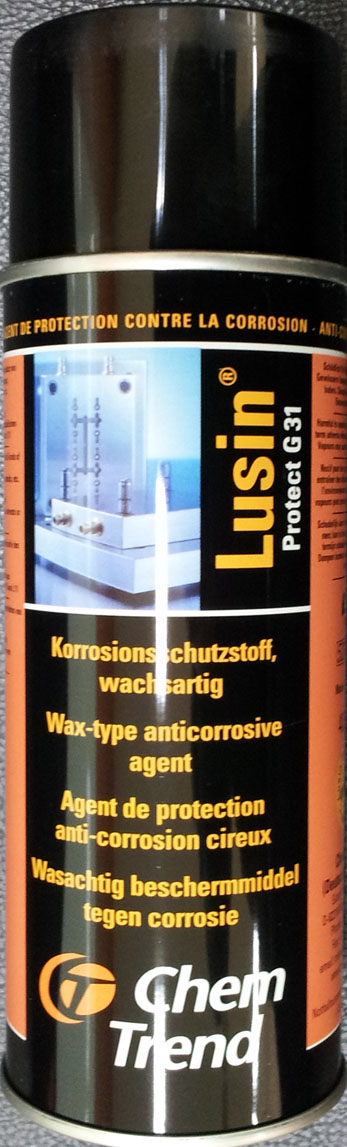

Lusin Protect G31/G32   Wax based anti-corrosive agent and lubricant
lasting protection against corrosion
Lusin Protect O45   Grease based anti-corrosive agent, repels water
Lusin Protect O41   High performance multi-purpose spray oil, removes rust
protects against dampness
Lusin Protect O13     Universal rust dissolver, dissolves rust, dirt and soiling
Release Agents
(이형제)

Lusin Alro OL151   Silicone-free universal release agent for thermoplastics and thermosets
Lusin Alro OL152     Silicone-free universal release agent for thermoplastics processing
Lusin Alro OL141   Special Silicone-free release agent for processing polycarbonates and
other thermoplastics
Especialy PC AND ABS prevent stress cracking and flow lines
Lusin Alro LL261   Silicone-free release agent for thermoplastics thermoset and
elastomer processing
Lusin Alro O201   Silicone-free release agent
Lusin Alro LL301   Silicone-free release agent for thermoplastics thermoset and
elastomer processing

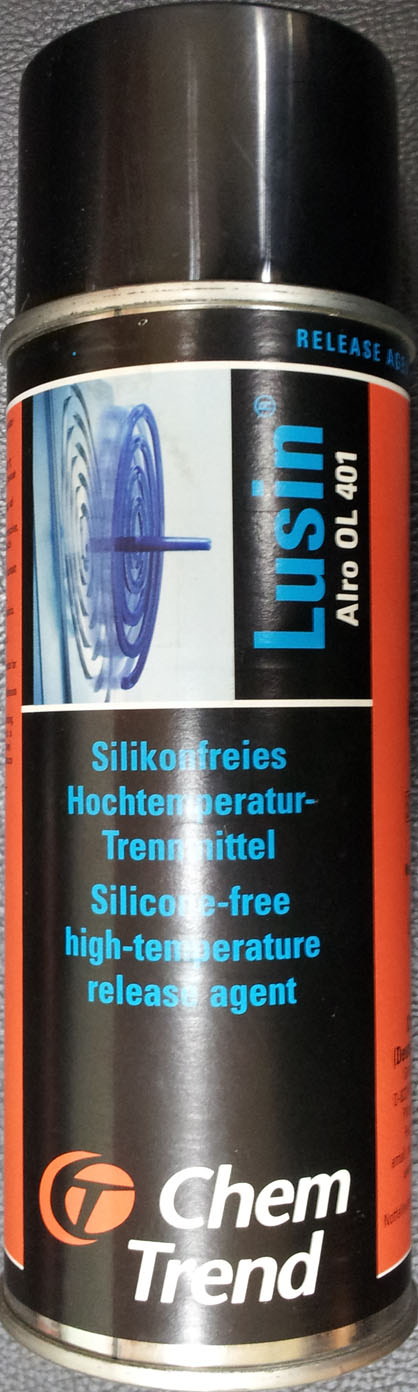

Lusin Alro OL401 Silicone-free release agent for processing of high temperature resistant plastics

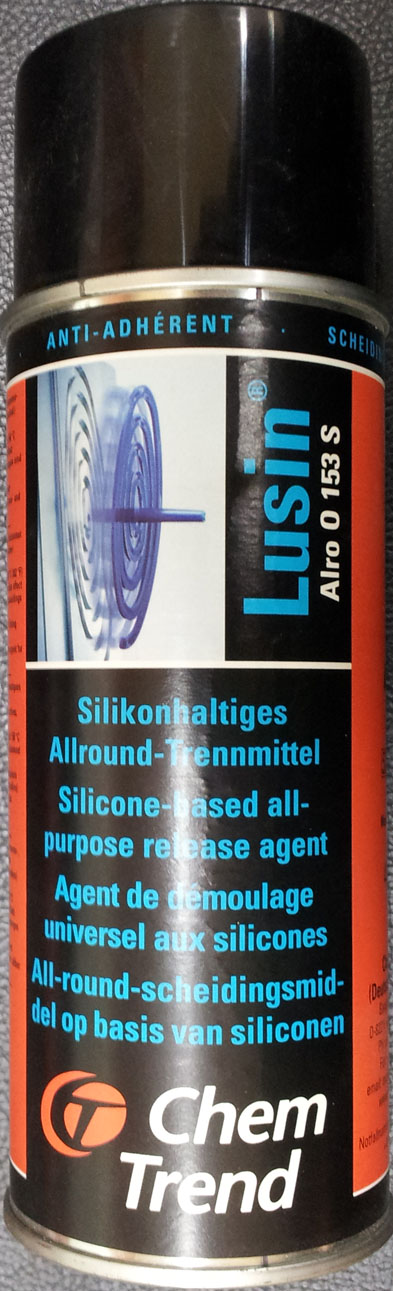

Lusin Alro O153S   Universal silicone release agent for plastic and rubber processing
Lusin Alro OL153S     Universal silicone release agent for thermoplastic and elastomer processing
Lusin Alro OL201S     Silicone multipurpose release agent for thermoplastic
thermoset and elastomer processing
Lusin Alro OL152S     Universal silicone release agent for thermoplastic
thermoset and elastomer processing
Lusin Alro HL251S   Semi-permanent silicone release agent for thermoplastic and
thermoset processing

Table 2 Screw 퍼지제(Purging Compounds) Application
Products Engineering
Thermoplastics
Polyolefin H.T
Thermoplastics
Temperature
Application
Hot
Runners
Injection Film
Extrusion
Blow
Molding
Profile
Extrusion
FDA
Lusin Clean G320   180℃~320℃
Lusin Clean G315     170℃~315℃
Lusin Clean G410   270℃~410℃
Lusin Clean G300     165℃~300℃
Lusin Clean OH311     170℃~310℃
Lusin Clean OH251   175℃~250℃
Lusin Clean LD250     160℃~250℃
Lusin Clean G295C     170℃~295℃

Table 3 세척제(Cleaning Agents) + 부식방지/보호제(Anti-Corrosive/Protective Agents) Application
Items Products FDA Spray Bulk Application Remarks
Cleaning Agents
(세척제)
Lusin Clean L11   Degreases and cleans thoroughly
Short drying times
Suitable for plastic and rubber
Suitable for ultrasonic cleaning
Special mold degreaser
Organic solvents 세척제
Lusin Clean L21 Removes polymer residues
Has a rapid cleaning effect
NSF Approved
Plastic residue removes
plastic/paint surfaces 손상됨
Organic solvents 세척제
Lusin Clean L21F Removes polymer residues
Has a rapid cleaning effect
NSF Approved
Plastic residue removes
plastic/paint surfaces 손상됨
Organic solvents 세척제
Lusin Clean L23F Removes polymer residues
Has a rapid cleaning effect
NSF Approved
Plastic residue removes
plastic/paint surfaces 손상됨
Organic solvents 세척제
Lusin Clean L51     Remove oils,grease,waxes and resins etc.
From metal and most plastic surfaces
Spreads easily and rapidly
Rapid and thorough cleaning
Multi-purpose cleaner
Organic solvents 세척제
Lusin Clean W81   Multi-purpose cleaner for industrial use
Very good removal of oils and greases
Does not attack paint of plastic surfaces
자동차 내외장,윈도우 wiper 세척
부억, 목욕탕 등
Cleaning concentrate
Water based cleaner
Lusin Clean W101     Highly effectively in removing elastomer
deposit from steel moulds
Water based cleaner
Aqueous alkaline cleaner
Lusin Clean 61-205   Degreases and cleans thoroughly
Particularly suitable for degreasing and
mold cleaning
Suitable for ultrasonic cleaning
Mold cleaner for
Ultrasonic bath
Organic solvents 세척제
Lusin Clean 10-302     Liquid alkaline
Suitable for steel, aluminium, Copper and brass
rust protection on iron and steel
Mold cleaner for
Ultrasonic bath
Organic solvents 세척제
Lusin Clean 10-303     Liquid
free of complexing agents like EDTA, NTA
improves the cleanging results of alkaline
cleaners
rust protection on iron and steel
Mold cleaner for
Ultrasonic bath
Organic solvents 세척제
세척공정에서 고려해야 할 사항들
(1)무엇을 세척하려고 하는가?
(2)오염물질이 무엇인가?
(3)세척이 어느정도 되어야 하는가?
(4)세척제 및 세척방법 선택
(5)세척제가 피세척물에 부식이나 손상을
    가하지 않는가?
(1)사출을 하고 있는 동안 금형 세척을 하여야 하는 경우 :
     L21을 사용하여 세척하고, 코어에 남아 있는 L21을 L11로 세척한다.
(2)금형을 내려서 분해 세척 하는 경우 : L11을 사용하여 세척한다.
Anti-Corrosive/
Protective Agents
(부식방지/보호제)
Lusin Protect G11/G12   Stable transparent or red film
Resistance to low and high temperatures
Repels moisture
Ensures temporary protection against
corrosion
Oily mold protection
repels moisture
Lusin Protect G31/G32   Stable transparent or red film
Film resistant to handling
Lasting protection against corrosion
Suitable for use as a release agent
Long term protection
Wax base mold protection
Anticorrosive and lubricant
on a basis of wax and
mineral fats
Lusin Protect O45   Foodstuff approved
Stable, Transparent protective film
Repels water
Temperature range up to 80℃
Foodstuff approved
mold protection
Lusin Protect O41   Lubricate without greasy touch
Removes rust
Loosens corroded parts
Protects against dampness
Not water soluble
Multi-purpose protecting
agents,
comparable with WD40
Lusin Protect O13     Low viscosity
Good moisture infiltration
Lubricates moving parts e.g screws
springs,hinges
Protects rust-free metals effectively
against corrosion
Dissolves rust,dirt and soiling
Penetrates smallest gaps
Rust dissolver
금형부식방지/보호제 사용시 고려 사항들
(1)단시간 일시적으로 보호 할 것인지 혹은
    장기간 보관 할지 결정
(2)부식방지/보호제가 편리하게사용가능한가?
(3)부식방지,세척,녹제거,소음방지 용도 구분
(1)윤활제도 함유하고 있어서 소음이나, 부식방지, 녹제거 기능을
     가지고 있으며, 사용분야는 다양 합니다.
(2)자동차, 문, 창문, 각종 공구의 원활한 작동과 녹방지, 볼트.너트의
     풀림, 각종 구동 부위의 소음제거 등으로 사용 됩니다.

Table 4 Release agents for other applications available on request
Application OL OL OL OL O LL LL OL OL O O OL OL OL HL HL
151 152 141 154 201 261 301 401 152S 153S 153SF 153S 201F 201S 251S 252S
PE, PP

PS

SAN, ABS, ASA

PVC, PVC-Cop

PTFE, PVDF

PMMA, PMMA-Cop

POM, POM-Cop

PA6, PA66, PA610, PA11, PA12

PC

PET,PBT

PPO,PEEK,PPS,PES,PPSU,PSU

CA,CAB,CP

TPE

TPU

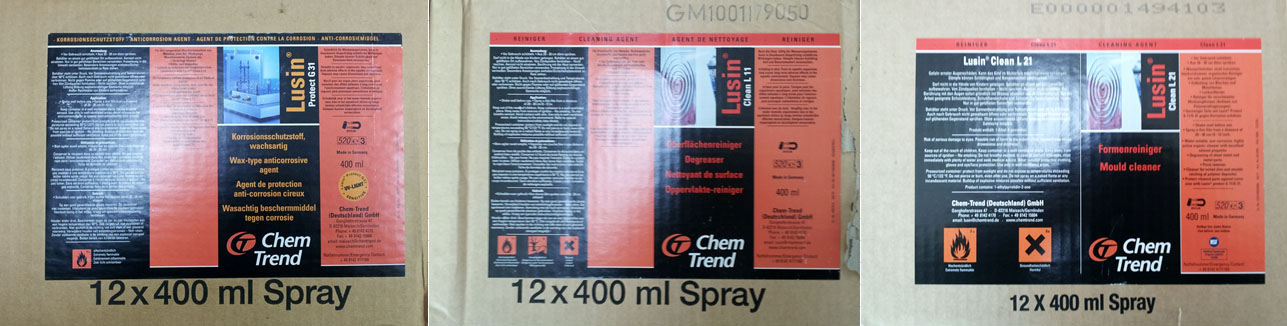

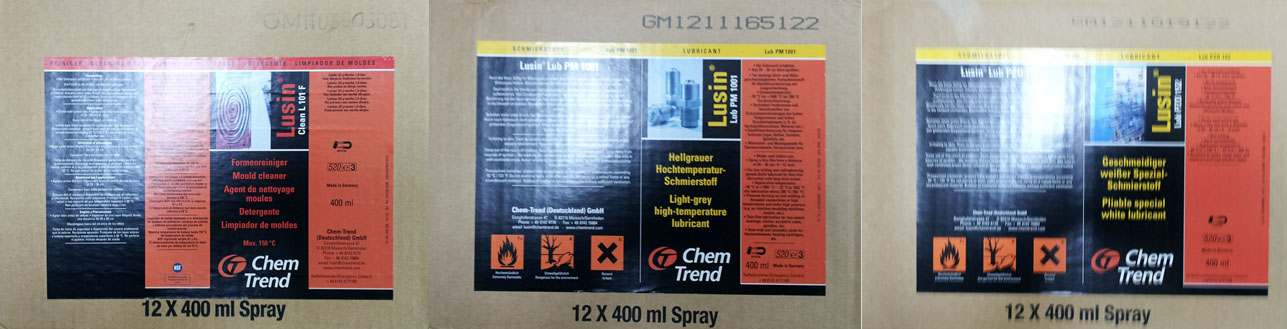

Available in 400ml Spray can
Available as open stock
